1 Hp Oil Field Single Phase 4 Inch Submersible Pump Set
Unlock the power of reliable, high-performance water delivery with our 1 HP Oil Field Single Phase 4 Inch Submersible Pump Set.
Key features/benefits bullet list:
- Corrosion-resistant stainless steel body
- Specially designed for low-voltage working
- High electrical and mechanical efficiency
- Higher heat dissipation for longer lifespan
- Dynamically balanced rotor and rotating parts for uniform clearance
- Specially designed bearing to withstand axial thrust loads
- Designed for high voltage fluctuation
- High efficiency, low power consumption
Paragraph on top 1-2 benefits:
This robust submersible pump is engineered to deliver exceptional performance even in the harshest oil field environments. With its corrosion-resistant stainless steel construction and specialized design for low-voltage operation, this pump set provides unparalleled reliability and durability. Its high efficiency and low power consumption make it an economical choice for a wide range of water supply applications.
Paragraph on who it’s for and how it improves their life:
Whether you’re looking to supply drinking water for a housing complex, power a hospital’s water system, or provide a reliable fire-fighting solution, this 1 HP submersible pump set is the perfect choice. Its versatile design and high-performance capabilities make it an ideal solution for a variety of commercial and industrial water supply needs, ensuring a consistent, dependable flow of water to improve the lives of those who rely on it.
Related products
Features :
- Corrosion resistant stainless steel body.
-Specially designed for low voltage working.
- High Electrical and Mechanical efficiency.
- Higher heat dissipation.
- Dynamically balanced rotor and other rotating parts for uniform clearance.
- Specially designed bearing to withstand axial thrust loads.
- Designed for high voltage fluctuation.
- High efficiency, low power consumption.
Specification :
Product Type : Submersible Pump
Brand : Apollo Gold
Power : 1.0 HP
Wattage : 0.75 kW
Supply Voltage : 150-220 Volt, 50 Hz, AC Power Supply
Electricity Connection : Single Phase
No Of Stages : 8 Stage
Pump Type : V4 Type
Suitable Bore Size : 4 inch (100 mm)
Core : 2
Max. Head Range : 300 Ft. (91 Meter)
Max. Flow/Discharge Rate : 80 LPM (4800 LPH)
Pipe Size (Suction x Delivery) : 97 x 97 mm (3.8 x 3.8 inch)
Pump Weight : 18 Kg (Approx.)
Control Panel Weight : 2 Kg (Approx.)
Submersible Cable Weight : 2.5 Kg (Approx.)

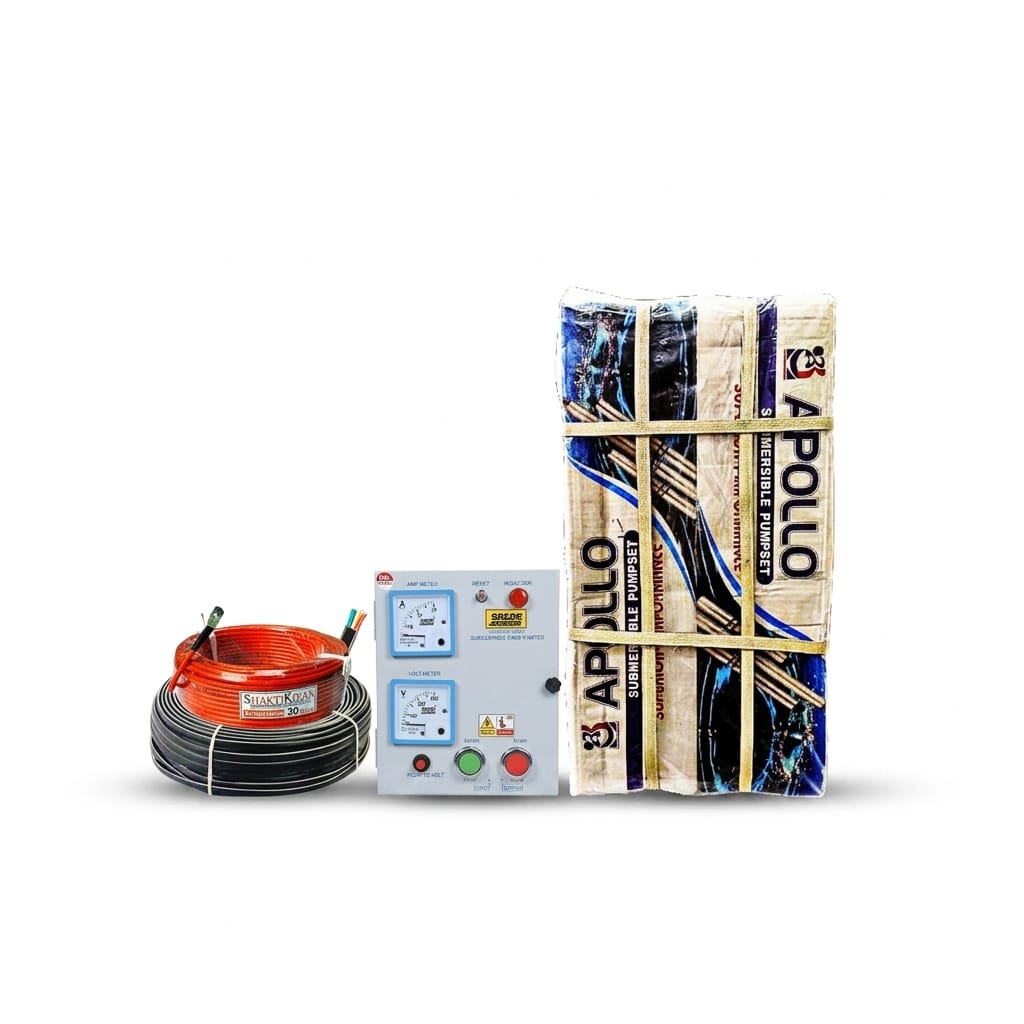

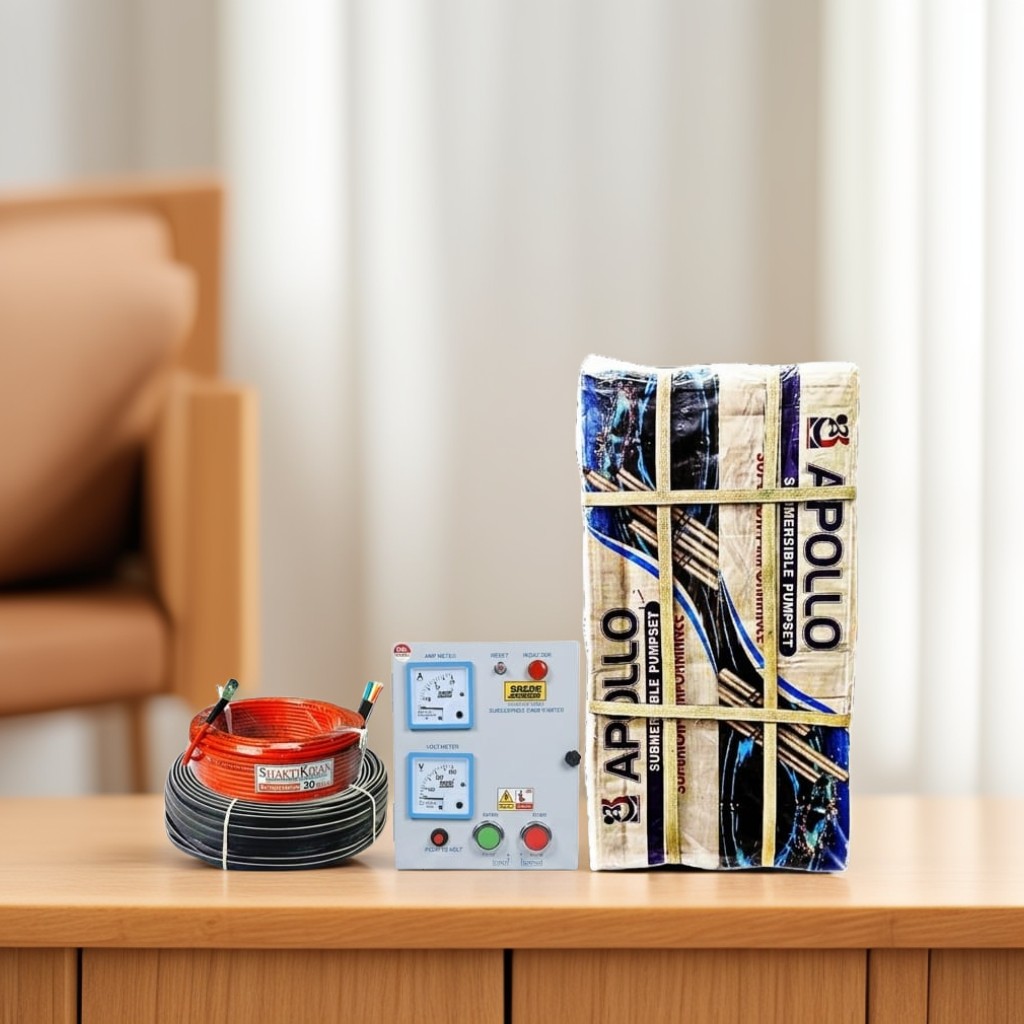

Accessories :
- Control Panel
- 30 Meter Submersible Cable
- 30 Meter Safety Wire
Material Of Construction :
Motor Body : Stainless Steel
Motor Rotor : Copper
Motor Pipe : Stainless Steel
Bearing Bush : Leaded Bronze
Motor Shaft : SS-410
Thrust Bearing : Carbon Vs Stainless Steel
Rotor : EC Grade Copper Conductor
Housing/Base/Connection Piece : CI (Grade FG-200/FG-220)
Suction/Outlet : CI (Grade FG-200/FG-220)
Diffuser : Noryl (Engineering Glass Filled)
Pump Shaft : SS-410
Pump Pipe : Stainless Steel
Application :
- Drinking water supply. Domestic & community water supply.
- Housing-Complexes, Hospitals, High rise building.
- Fire fighting, Landscaping, Fountains, Service stations.
- De-watering of mines, Cooling water circulation and Booster application.
Warranty :
1 YEARS REPLACEMENT GUARANTY
Country of origin: India
